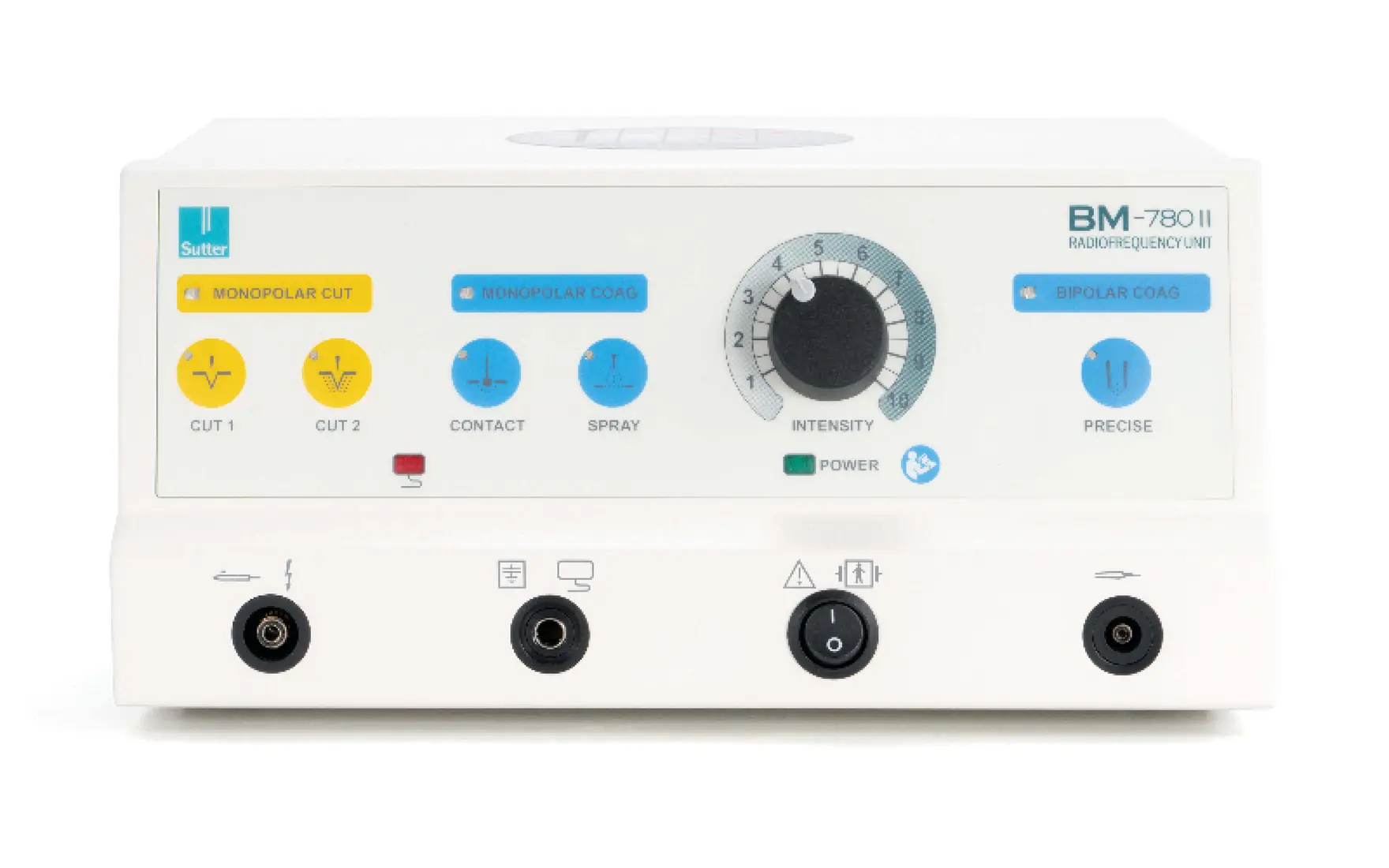

The BM-780 II radiofrequency generator is ideally suited for small surgical interventions in ENT clinics and doctors’ offices, for plastic surgery, and dermatology.



Technology


Safety due to AutoRF

AutoRF™ is a smart impedance control function that will tailor the RF power output to the tissue condition. Whether it is cutting through different types of tissue or altering tissue conditions during coagulation, the AutoRF™ feature will deliver adapted power output as required by the different tissue impedances. Thanks to AutoRF™ the BM-780 II is a comfortable and safe radiofrequency unit. Cutting and coagulation results are reproductible.

Bipolar coagulation mode

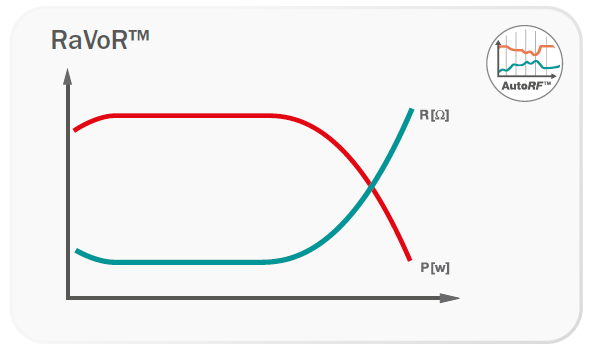

In bipolar coagulation the power output is reduced according to the degree of coagulation and the desiccation of tissue to a minimum of only about 1/4 of the initial setting.

Monopolar cut mode

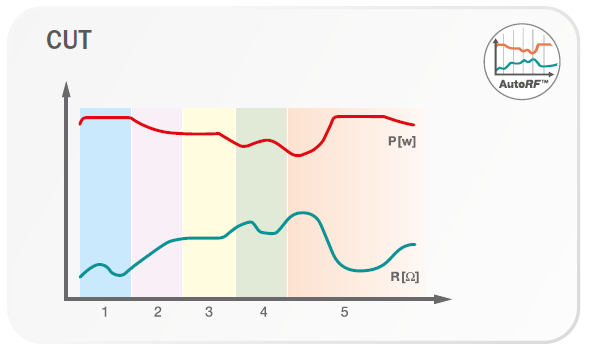

During the monopolar cutting process the unit adjusts the output to the type of tissue (skin, muscles, fat, etc.) exactly as needed.



Applications


RaVoR™ Radiofrequency-Volume-Reduction

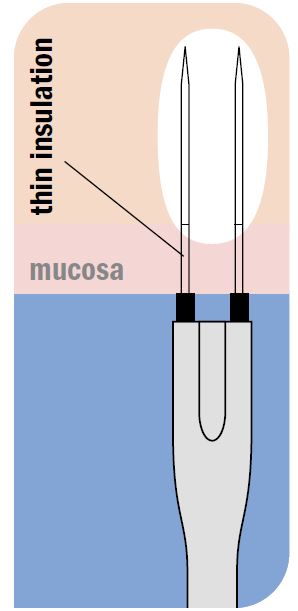

Radiofrequency energy causes delibrate local lesions through the short and selective heating of certain tissue areas. The treated tissue is decomposed by the body‘s own immune system and transformed into fibrous scar tissue. This process leads to a stiffening of the treated area. The specifically designed RaVoR™ bipolar electrodes ensure a lesion suited to the patient‘s anatomy and thus an optimal stiffening. A special, super-thin insulation protects the mucosa from burns.



BM-780 II basic set with reusable patient plate

  • BM-780 II radiofrequency generator (incl. mains cord, user manual, test protocol and instruction CD-ROM)
  • Foot switch, protection class IP X8
  • Monopolar pencil for 2.4 mm electrodes, cable length: 4 m
  • Bipolar silicone cable, length: 4.5 m
  • Reusable patient plate, cable length: 4 m

Optional basic set with single-use patient plates.



Further information

For detailed information on applications and accessories, please refer to our product catalog:
BM-780 II Radiofrequency Generator [3,1 MB]
